Pole Mounted HVLS Fan

Pole fan benefits -

  •  High performance fan for indoor & outdoor applications such as lawns, Restaurant etc.
  • Single fan replaces multiple wall mounted fan
  • Distributes air up to 28,000 sq.ft., corner to corner, outstanding Coverage without draft consuming only 1.5KW power.
  • Variable speed controller to set and control airow. reverse operation options.

Pole Fan advantages

Safety
    • Extremely High Level of Primary Safety for all components.40 mm shaft Dia. / M14 Bolts for Structure & Chassis / Nylock Nuts and Loctite for all fasteners / Steel EN 10025 – 90 for Structure & Chassis / GI Wire Ropes with additional PVC Coating/ etc
    • Secondary Anti – Fall Safety Systems provided for all Major Components
      • Structure – Secondary Wire rope to lock to building Structure
      • Blades – Embedded Wire Ropes in Blade
      • Hub inhub assembly for anti-fall. etc
Performance
    • Aerofoil Blade Design with Blade Angle of 27 deg. for
    • optimum Air Flow Rate & Thrust.
    • Tapered Fan Blades for Uniform Air Distribution. High Efciency German Motor & Gear Box for Low Costs.
Durability & Reliability
  • High Grade 6061 T6 Aluminum Alloy Used for Aerofoil Blades
  • Motor & Gearbox with Synthetic Oil & VFD from Danfoss
  • High Grade Steel upto 12mm thick with Hot Dip Galvanizing for best anti corrosion protection.
  • GI Coated Wire Ropes with PVC Coating.
Download Bordure

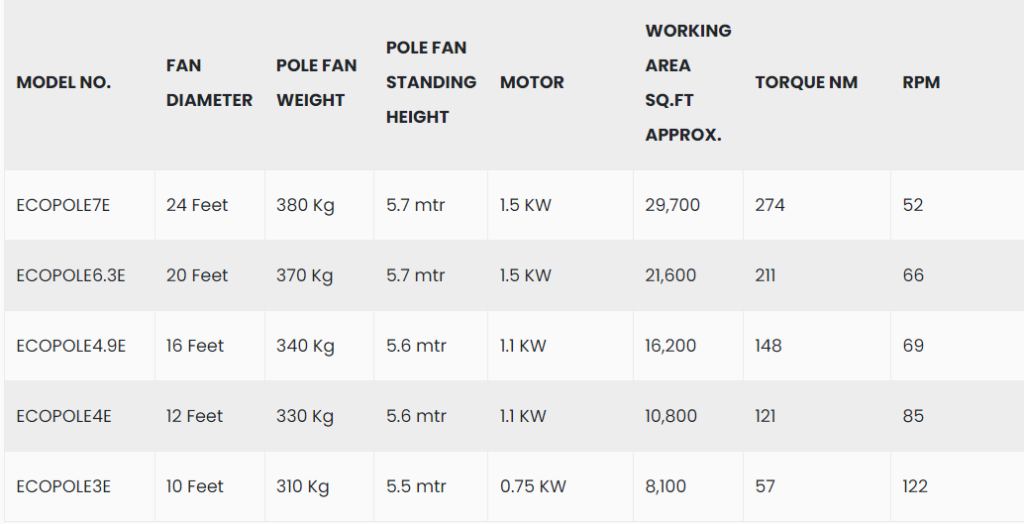

Pole Mounted HVLS specifications
